YXC70E Series
YXC70E Series
Product Features
High Q, High RF Current/Voltage, High RF Power, Low ESR/ESL, Low noise,Ultra-Stable Performance
Product Application
Typical functional applications: Bypass, Coupling, Tuning, Impedance Matching and D.C. Blocking.
Typical circuit applications: VHF/UHF RF Power Amplifiers, Antenna Tuning, Plasma Chambers and Medical(MRI coils)
YXC70E Series Rated Capacitance Table
Code | Cap. pF | Tol. | Rated WVDC | Code | Cap. pF | Tol. | Rated WVDC | Code | Cap. pF | Tol. | Rated WVDC |
1R0 | 1.0 | B C D | 2000V or 3600V | 220 | 22 | F G J K M | 2000V or 3600V | 471 | 470 | F G J K M | 2000 or 2500V |
1R2 | 1.2 | 270 | 27 | 561 | 560 | ||||||
1R5 | 1.5 | 330 | 33 | 681 | 680 | ||||||
1R8 | 1.8 | 390 | 39 | 821 | 820 | 1000V | |||||
2R2 | 2.2 | 470 | 47 | 102 | 1000 | ||||||
2R7 | 2.7 | 560 | 56 | 122 | 1200 | ||||||
3R3 | 3.3 | 680 | 68 | 152 | 1500 | ||||||
3R9 | 3.9 | 820 | 82 | 182 | 1800 | ||||||
4R7 | 4.7 | 101 | 100 | 222 | 2200 | ||||||
5R6 | 5.6 | 121 | 120 | 272 | 2700 | G J K M | 500V | ||||
6R8 | 6.8 | 151 | 150 | 332 | 3300 | ||||||
8R2 | 8.2 | 181 | 180 | 472 | 4700 | ||||||
100 | 10 | F G J K M | 221 | 220 | 512 | 5100 | |||||
120 | 12 | 271 | 270 | ||||||||
150 | 15 | 331 | 330 | ||||||||
180 | 18 | 391 | 390 | ||||||||
Remark: 1)We can also do the 70E 1.0~82pF with rated power 7200V
2)Special capacitance, tolerance and WVDC are available, consult with Yixin Microwave
Performance
Item | Specifications |
Quality Factors(Q) | 1pF to 1000pF :greater than 10,000 at 1 MHz. 1100pF to 5100pF :greater than 10,000 at 1 KHz. |
Insulation Resistance(IR) | Test voltage:500V 105 Megohms min. @ +25°C at rated WVDC. 104 Megohms min. @ +125°C at rated WVDC. |
Rated Voltage(WVDC) | See Rated Voltage Table |
Dielectric Withstanding Voltage (DWV) | Rated WVDC:3600V |
1pF to 680pF :120% of rated Voltage for 5 seconds. | |
820pF to 2200pF :150% of rated Voltage for 5 seconds. | |
2700pF to 5100pF :250% of rated Voltage for 5 seconds. | |
Rated WVDC:7200V | |
1pF to 82pF :8000V for 5 seconds. | |
Operating Temperature Range | －55℃ to +125℃ |
Temperature Coefficient(TC) | 0±30ppm/℃ |
Capacitance Drift | ±0.02% or ±0.02pF, whichever is greater. |
Piezoelectric Effects | None |
Termination Type | See Termination Type Table |
Environmental Tests
Item | Specifications | Method |
Thermal Shock | DWV: the initial value IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.5% or 0.5pF. | MIL-STD-202, Method 107, Condition A. At the maximum rated temperature(-55℃ and 125℃) stay 30 minutes.The time of removing shall be not more than 3 minutes. Perform the five cycles. |
Moisture resistance | MIL-STD-202, Method 106. | |
Humidity (steady state) | DWV: the initial value IR: the initial value Capacitance change: no more than 0.3% or 0.3pF. | MIL-STD-202, Method 103, Condition A, with 1.5 Volts D.C. applied while subjected to an environment of 85°C with 85% relative humidity for 240 hours min. |
Life | IR: Shall be not less than 30% the initial value Capacitance change: no more than 0.2% | MIL-STD-202, Method 108, for 2000 hours, at 125℃.200% Rated voltage D.C. applied. |
YXC70E Chip Dimension
Item | length | width | thickness |
YXC70E Chip Dimension | 0.380 (9.65) | 0.380(9.65) | 0.117(4.5)max |
Remarks:1.unit:inch(millimeter).2.Tolerance:±0.010( 0.25)
YXC70E Lead type Dimension
1)unit:inch(millimeter).2.Tolerance:±0.010( 0.25) 2)Lead material:is silver-plated copper
1)unit:inch(millimeter).2.Tolerance:±0.010( 0.25) 2)Lead material:is silver-plated copper

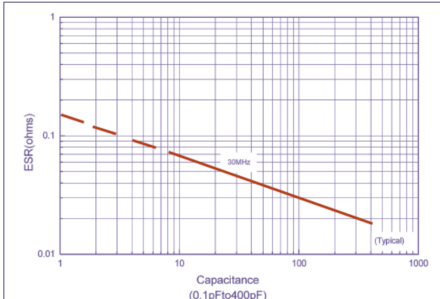

ESR VS Capacitance
Q VS Capacitance
Series resonance VS Capacitance
Current rating VS Capacitance
Current rating VS Capacitance
