Coaxial Isolator
Coaxial Isolator
Introduction
1.Frequency range from 60MHz to 20GHz
2.Port isolation，Module Integration，Transceiver subsystems
3.Custom design available upon request
4.All the below are technical indexes at normal temperature
Coaxial Isolator (1/2)
| P/N. | Frequency Range | Bandwidth | Insertion Loss | Isolation | VSWR | Operating Temp. | Reverse Power | Size | Connector type |
| (MHz) | (MHz) | (dB.Max) | (dB.Min) | (Max) | (℃) | (W) | L×W×H/mm | ||
| YXCI0104-C | 88-108 | 20 | 0.5 | 19 | 1.25 | -20～+65 | 50 | 41*65*20 | N/SMA |
| YXCI0104-C | 108-112 | 4 | 0.4 | 20 | 1.20 | -20～+65 | 50 | 41*65*20 | N/SMA |
| YXCI0104-C | 118-137 | 19 | 0.4 | 20 | 1.20 | -20～+65 | 50 | 41*65*20 | N/SMA |
| YXCI0104-C | 148-174 | 26 | 0.4 | 20 | 1.25 | -30～+75 | 50 | 41*65*20 | N/SMA |
| YXCI0104-C | 174-230 | 56 | 0.4 | 20 | 1.25 | -30～+75 | 20 | 41*65*20 | N/SMA |
| YXCI0301-A | 380-500 | 120 | 0.6 | 18 | 1.30 | -20～+65 | 10 | 52x57.5x22.0 | N/SMA |
| YXCI0401-A | 470-570 | 100 | 0.5 | 18 | 1.30 | -20～+65 | 10 | 44X49.5X21 | N/SMA |
| YXCI0401-A2 | 520-580 | 60 | 0.5 | 20 | 1.25 | -20～+65 | 200 | 44.0x76.5x21.0 | N/SMA |
| YXCI0701-A2 | 700-1000 | 300 | 0.8 | 16 | 1.60 | -40～+85 | 250 | 35.0X60.0X20.0 | N/SMA |
Coaxial Isolator (2/2)
| P/N. | Frequency Range | Bandwidth | Insertion Loss | Isolation | VSWR | Operating Temp. | Average Power | Size | Connector type |
| (GHz) | (GHz) | (dB.Max) | (dB.Min) | (Max) | (℃) | (W) | L×W×H/mm | ||
| YXCI101A-S1 | 1.1-1.6 | 0.5 | 0.6 | 18 | 1.30 | -40～+85 | 10 | 25.4x28.5x15.0 | N/SMA |
| YXCI101A | 1.7-2.2 | 0.5 | 0.6 | 18 | 1.30 | -40～+85 | 10 | 25.4x28.5x20.0 | N/SMA |
| YXCI201-C | 1.8-2.5 | 0.7 | 0.5 | 20 | 1.30 | -40～+85 | 10 | 49.5x50.8x19.0 | N/SMA |
| YXCI301-A | 2.6-4.0 | 1.4 | 0.5 | 20 | 1.30 | -40～+85 | 10 | 32.0x34.0x18.0 | N/SMA |
| YXCI401 | 3.4-4.2 | 0.8 | 0.4 | 20 | 1.25 | -40～+85 | 10 | 16x26x15.0 | N/SMA |
| YXCI401 | 5.8-7.8 | 2.0 | 0.5 | 20 | 1.25 | -40～+85 | 10 | 25.4x28.5x15.0 | N/SMA |
| YXCI401-C | 3.8-4.0 | 0.2 | 0.5 | 20 | 1.25 | -10～+75 | 100 | 25.4x39x21.0 | N/SMA |
| YXCI801 | 7-8.5 | 1.5 | 0.4 | 20 | 1.25 | -20～+65 | 10 | 12x20x13.0 | N/SMA |
| YXCI801 | 8.5-9.5 | 1.0 | 0.4 | 20 | 1.25 | -20～+65 | 10 | 12x20x13.0 | N/SMA |
| YXCI801 | 11-14.5 | 3.5 | 0.5 | 20 | 1.25 | -20～+65 | 10 | 12x20x13.0 | N/SMA |
| YXCI801 | 17.3-18.1 | 0.8 | 0.5 | 20 | 1.35 | -20～+65 | 10 | 12x20x13.0 | N/SMA |

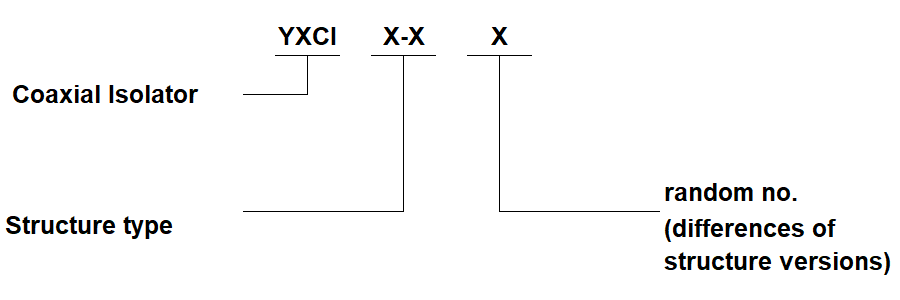

How to order
